AR (Abrasion-Resistant) Panels: If your panels are going to travel and take a beating and you need the most durable product available, we recommend using one of our AR models. AR acrylic features 3M™ 906 Abrasion Resistant Coating on both sides. The 906 coating is 40 times more resistance to marring, scratching and chemical attack. AR acrylic can be cleaned with standard ammonia-based cleaners and paper towels without worry of fogging.

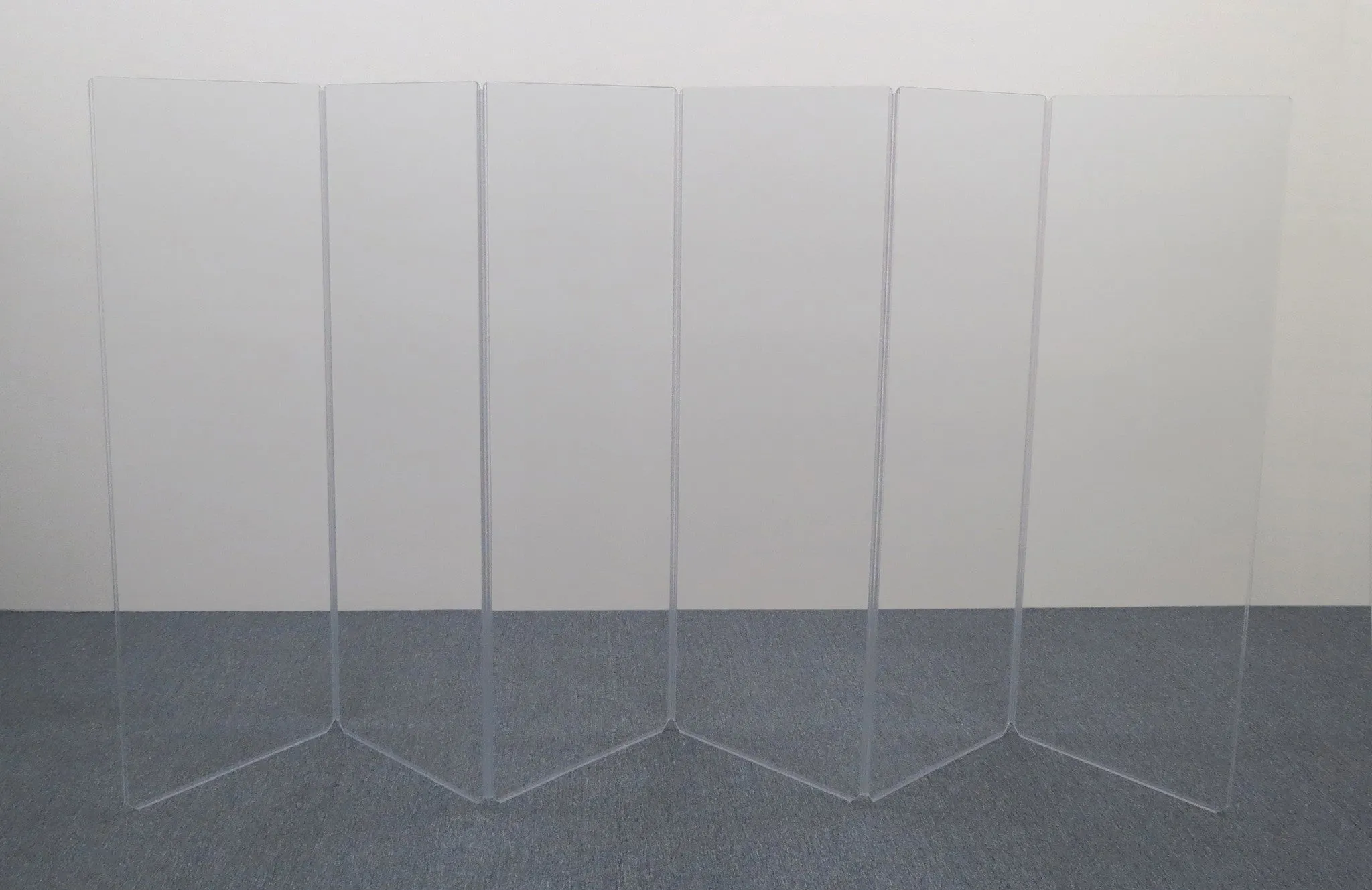

66-inch high AR2466 ClearSonic Acrylic Panels are great for isolating drums, cymbals and other instruments mounted higher than 48 inches. The AR2466x6 is one of our best-selling systems and will provide about 180 degrees of coverage around a 5-piece drum kit.12-inch and 18-inch ARX Height Extenders are available if more height is desired.

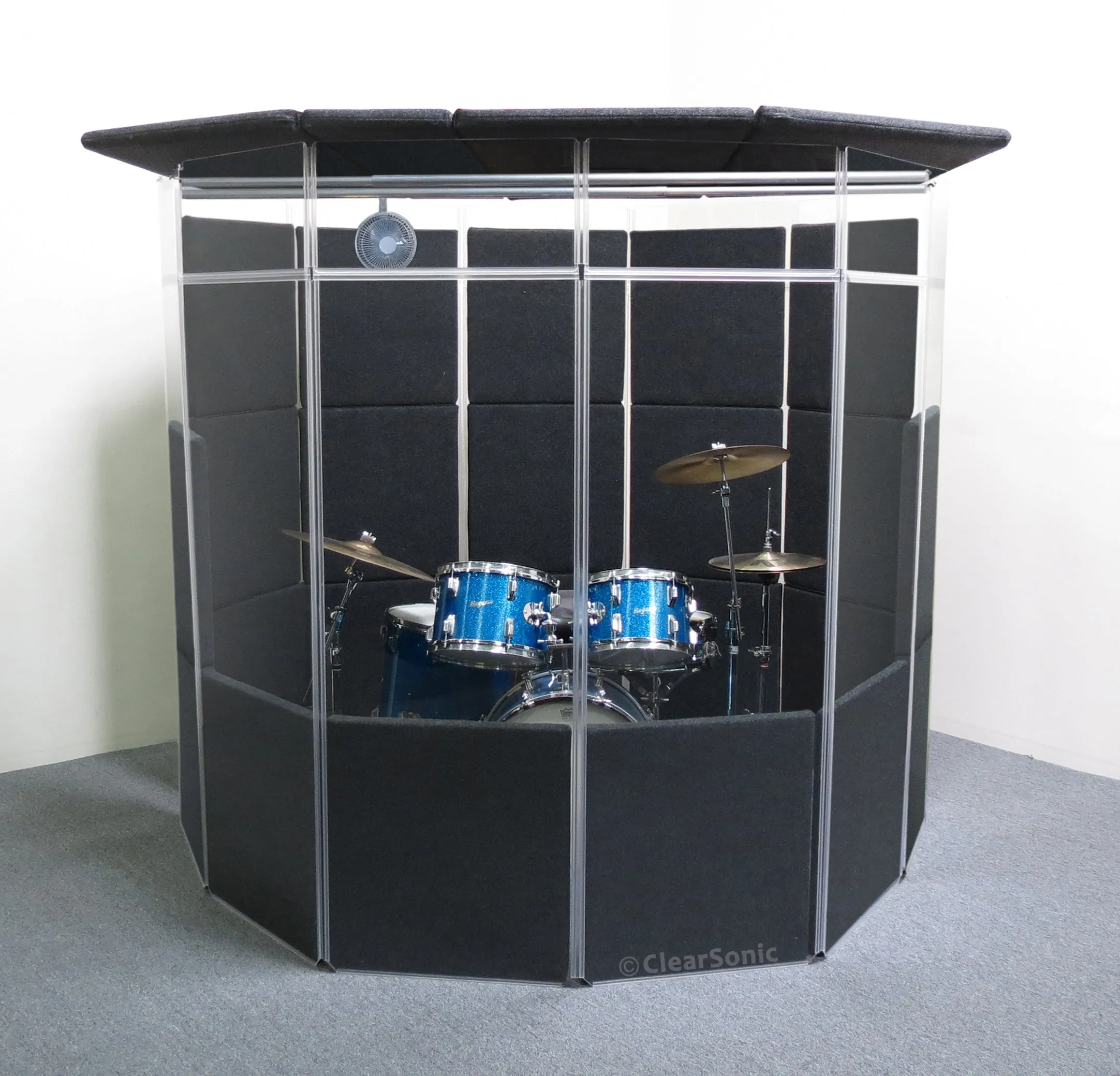

Used with our IsoPac B and MiniMega Isolation Booths.
Acrylic Features
- Routered edges – provide clean and smooth edge that won’t cut your hands.
- ¼” thick acrylic material – provides durability for transporting panels. Creates acoustic separation between instruments on stage or in the studio, cuts down on mic bleeding, and allows everyone to hear themselves or the mix better. Adds stability that allows for modular setup by supporting attachment of Sorber panels, such as the S2216, S2224 or S2233, directly to the acrylic panels with adhesive-backed Velcro.
- Cable cut-outs – allows space where each panel meets at the bottom for routing/organizing cables for microphones or any wired gear.
Hinge Features
- Full-length – our hinges run the full length of each acrylic panel. This extra coverage provides superior sound isolation compared to competitors whose hinges leave exposed seams between panels for sound to escape.
- Tooth in groove mechanical lock – the hinge tooth locks into the groove cut into each acrylic panel for superior connection and longer life, especially compared to Friction hinge.
- Low profile – allows for better aesthetics as hinge blends into the shield better.
- Flexibility – hinge bends 180 degrees in one direction and 90 degrees in the other allowing for accordion style folding. This makes it easier to ship, store, and transport, and allows for a more customized shield footprint.
